CNC Lathe 4th Axis Tailstock K11 80mm 3 4 Jaw Chuck Index Dividing Head

Name: CNC Lathe 4th Axis Tailstock K11 80mm 3 4 Jaw Chuck Index Dividing Head
Brand: Rattm Motor
Price: 189.7 USD

Wholesale CNC Lathe 4th Axis Tailstock K11 80mm 3 4 Jaw Chuck Index Dividing Head from china suppliers

Brand Name : Rattm Motor

Model Number : K11-80mm

Certification : CE CCC

Place of Origin : China

MOQ : 1piece

Price : $189.7-195.6

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 5000

Delivery Time : 2-7 work days

Packaging Details : Independent anti-collision foam+outer box packaging for each product

Center height : 65mm

chuck : 80mm 3/4 jaws

Tailstock : MT2

Stepper motor size : 57x57x76mm

Shaft length : 25.5mm

Step Angle : 1.8

Reducing ratio : 6:1 (belt deceleration mode)

Inner through hole diamete : 20mm

Contact Now

CNC Fouth 4h Axis K11 80mm 3 4 Jaw Chuck Index Dividing Head With Tailstock Lathe Part

K11-80mm

CNC Lathe 4th Axis Tailstock K11 80mm 3 4 Jaw Chuck Index Dividing Head

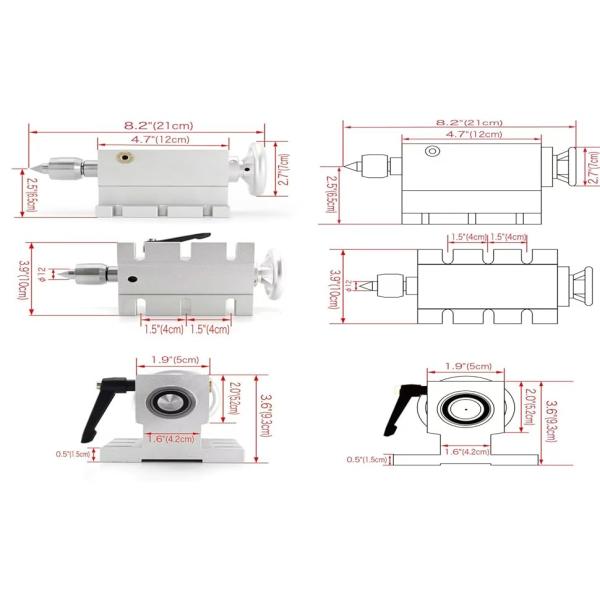

Morse Taper 2 Live Center Movable MT2 Tailstock

MT2 Tailstock
Center Height: 65mm
Stretch distance: 50mm
Top tip: Activity type
Axial locking wrench for tailstock

Accessories: Set of Anti-claw and wrenches

3 jaw chuck:

Suitable for clamping various types of materials.

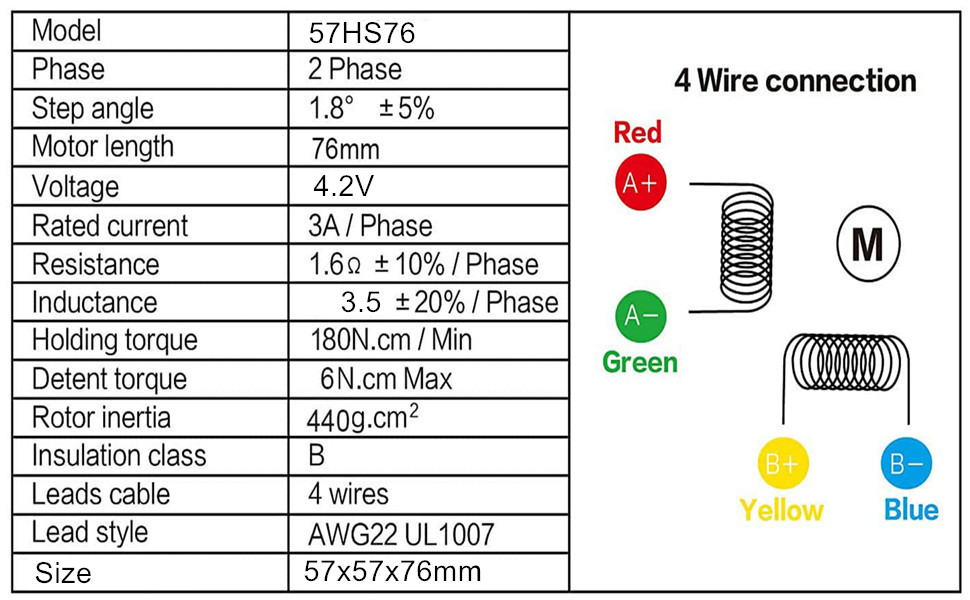

Wiring

Stepper motor's red wire connect driver's A+ port
Stepper motor's green wireconnect driver's A- port
Stepper motor's yellow wireconnect driver's B+ port
Stepper motor's blue wireconnect driver's B- port

Stepper Motor

Nema23 stepper motor
Size: 57x57x76mm
Shaft Diameter: 8 mm
Shaft length: 25.5mm
Step Angle:1.8
Current: 3A
Voltage: 4.2V
Temperature Rise: 80 c max
Insulation Resistance: 100MOhm(500V DC)
Holding Torque: 18kg.cm


Engraving Machine 4th Axis A Axis Chuck type: K11-80mm 3 jaw centering chuck Center height: 65mm Total height: 115mm Angle: 0.3°/ step Gear box output shaft diameter: 25mm Reducing ratio: 6:1 (belt deceleration mode)	The fourth axis parameter settings: Mach3 system settings: the pulses required for 1° (Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360° For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1 (200 x 16 x 100) / 360=888.88888888) Weihong system settings: 1 pulse along the angle 360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio) For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1 360 / (200 x 16 x 100) =0.001125	Hollow shaft Inner through hole diameter is 20mm
